SOLAR
ENERGY SYSTEM - STREET LIGHT SYSTEM
|
| |
|

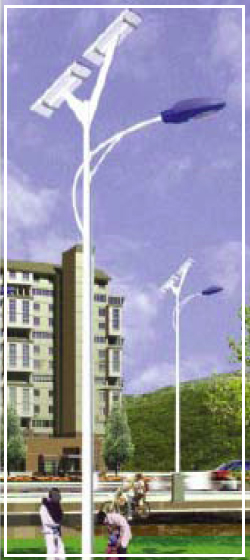

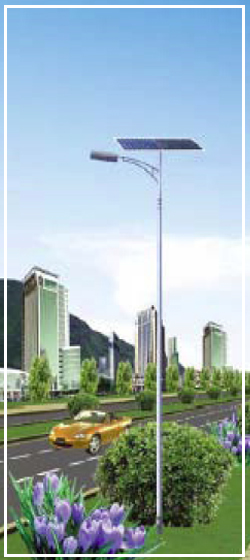

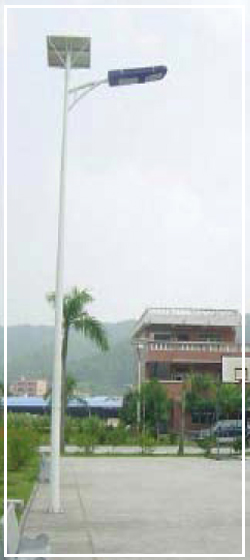

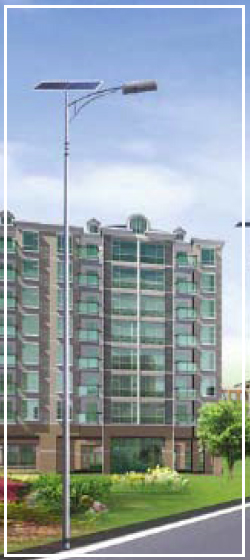

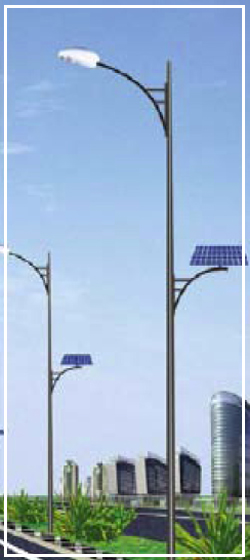

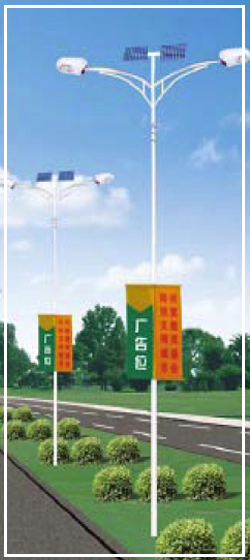

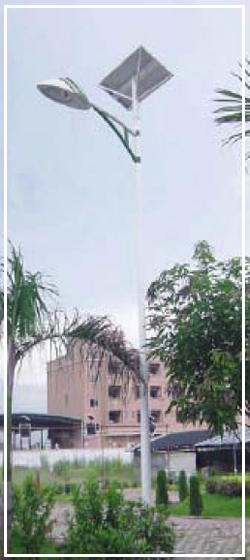

Solar
Street Lamps
Solar street lamps use high-effect monocrystalline silicon
or polycrystalline silicon solar modules
for power supply, The electricity is stored in high-efficiency,
sealed and maintenance - free battery.
The
advanced automatic controller (inverter) specially used for
solar street lamps, high-effect lighting source (high-effect
energy-saving lamps, high and low voltage sodium lamp, metal
halogen lamp, electrodeless lamp or LED),and over striking
and thickening special lamp posts put together make the street
lamps function as light control and time control. In the daytime
they automatically charges and at night they will give light
on their own.
Solar
street lamps are characte rized by energy-saving and environmental
protection, easy installation, no need of construction an
d laying of cables, no need of charges, reliable low-voltage
power supply and long service life (solar batter can serve
for 20-25 areas, on sunny days, charging for one day may last
for 5-10 da ys.
There
lamps may be widely used for lighting in squares, urban streets,
housing estates, parks and scenic, urban and rural roads and
factory areas.
|
|
|
|
MODEL
: JYS-01
- SOLAR
MODULE : 100 ~110WP
- Fully-sealed
and maintenance-free lead-acid
battery 12V/100 Ah
-
Controller specially designed for solar street
lamps : Protection against overcharge and
over-discharge, light control and time control
-
Light source : 36W high-efficiency energysaving
lamps (or halogen lamps, electrode less
lamp, LED)
-
Lamp post : 5~6 meters, over striking and
thickening and thickening, hot galvanization
spraying-plastic
- Illumination
: 2100Lm. Amounting to
incandescent lamp of 210W. Fully charged
lamps may word 6~10 hours a day
(adjustable) and last 5~7 days on-end in
cloudy or rainy weather.
-
Applicable temperature : -40 deg C ~50 deg C
-
Wind-proof capacity : >150FM/H
|
| |
|
|
MODEL
: JYS-02
- SOLAR
MODULE : 120 ~130WP
- Fully-sealed
and maintenance-free lead-acid
battery 12V/100 Ah
-
Controller specially designed for solar street
lamps : Protection against overcharge and
over-discharge, light control and time control
-
Light source : 45W high-efficiency energysaving
lamps (or halogen lamps, electrode less
lamp, LED)
-
Lamp post : 6~8 meters, over striking and
thickening and thickening, hot galvanization
spraying-plastic
- Illumination
: 2500Lm. Amounting to
incandescent lamp of 250W. Fully charged
lamps may word 6~10 hours a day
(adjustable) and last 4~6 days on-end in
cloudy or rainy weather.
-
Applicable temperature : -40 deg C ~50 deg C
-
Wind-proof capacity : >150FM/H
|
| |
|
|
MODEL
: JYS-03
- SOLAR
MODULE : 150 ~160WP
- Fully-sealed
and maintenance-free lead-acid
battery 12V/100 Ah
-
Controller specially designed for solar street
lamps : Protection against overcharge and
over-discharge, light control and time control
-
Light source : 55W high-efficiency energysaving
lamps (or halogen lamps, electrode less
lamp, LED)
-
Lamp post : 5~7 meters, over striking and
thickening and thickening, hot galvanization
spraying-plastic
- Illumination
: 3300Lm. Amounting to
incandescent lamp of 330W. Fully charged
lamps may word 6~10 hours a day
(adjustable) and last 4~6 days on-end in
cloudy or rainy weather.
-
Applicable temperature : -40 deg C ~50 deg C
-
Wind-proof capacity : >150FM/H
|
| |
|
|
MODEL
: JYS-04
- SOLAR
MODULE : 200 ~220WP
- Fully-sealed
and maintenance-free lead-acid
battery 12V/100 Ah
-
Controller specially designed for solar street
lamps : Protection against overcharge and
over-discharge, light control and time control
-
Light source : 70W high-efficiency energysaving
lamps (or halogen lamps, electrode less
lamp, LED)
-
Lamp post : 6~8 meters, over striking and
thickening and thickening, hot galvanization
spraying-plastic
- Illumination
: 4000Lm. Amounting to
incandescent lamp of 330W. Fully charged
lamps may word 6~10 hours a day
(adjustable) and last 5~7 days on-end in
cloudy or rainy weather.
-
Applicable temperature : -40 deg C ~50 deg C
-
Wind-proof capacity : >150FM/H
|
| |
|
|
MODEL
: JYS-05
- SOLAR
MODULE : 150 ~ 160WP
- Fully-sealed
and maintenance-free lead-acid
battery 12V/100 Ah
-
Controller specially designed for solar street
lamps : Protection against overcharge and
over-discharge, light control and time control
-
Light source : 55W high-efficiency energysaving
lamps (or halogen lamps, electrode less
lamp, LED)
-
Lamp post : 6~8 meters, over striking and
thickening and thickening, hot galvanization
spraying-plastic
- Illumination
: 4800Lm. Amounting to
incandescent lamp of 480W. Fully charged
lamps may word 6~10 hours a day
(adjustable) and last 5~7 days on-end in
cloudy or rainy weather.
-
Applicable temperature : -40 deg C ~50 deg C
-
Wind-proof capacity : >150FM/H
|
| |
|
|
MODEL
: JYS-06
- SOLAR
MODULE : 200 ~ 220WP
- Fully-sealed
and maintenance-free lead-acid
battery 12V/100 Ah
-
Controller specially designed for solar street
lamps : Protection against overcharge and
over-discharge, light control and time control
-
Light source : 40W x 2 high - efficiency energy
saving
lamps (or halogen lamps, electrode less
lamp, LED)
-
Lamp post : 6~8 meters, over striking and
thickening and thickening, hot galvanization
spraying-plastic
- Illumination
: 4800Lm. Amounting to
incandescent lamp of 480W. Fully charged
lamps may word 6~10 hours a day
(adjustable) and last 5~7 days on-end in
cloudy or rainy weather.
-
Applicable temperature : -40 deg C ~50 deg C
-
Wind-proof capacity : >150FM/H
|
| |
|
|
MODEL
: JYS-07
- SOLAR
MODULE : 200 ~ 240WP
- Fully-sealed
and maintenance-free lead-acid
battery 12V/100 Ah
-
Controller specially designed for solar street
lamps : Protection against overcharge and
over-discharge, light control and time control
-
Light source : 80W high - efficiency energy saving
lamps (or halogen lamps, electrode less
lamp, LED)
-
Lamp post : 6~8 meters, over striking and
thickening and thickening, hot galvanization
spraying-plastic
- Illumination
: 4800Lm. Amounting to
incandescent lamp of 480W. Fully charged
lamps may word 6~10 hours a day
(adjustable) and last 5~7 days on-end in
cloudy or rainy weather.
-
Applicable temperature : -40 deg C ~50 deg C
-
Wind-proof capacity : >150FM/H
|
|
| |
| |
|
 |
